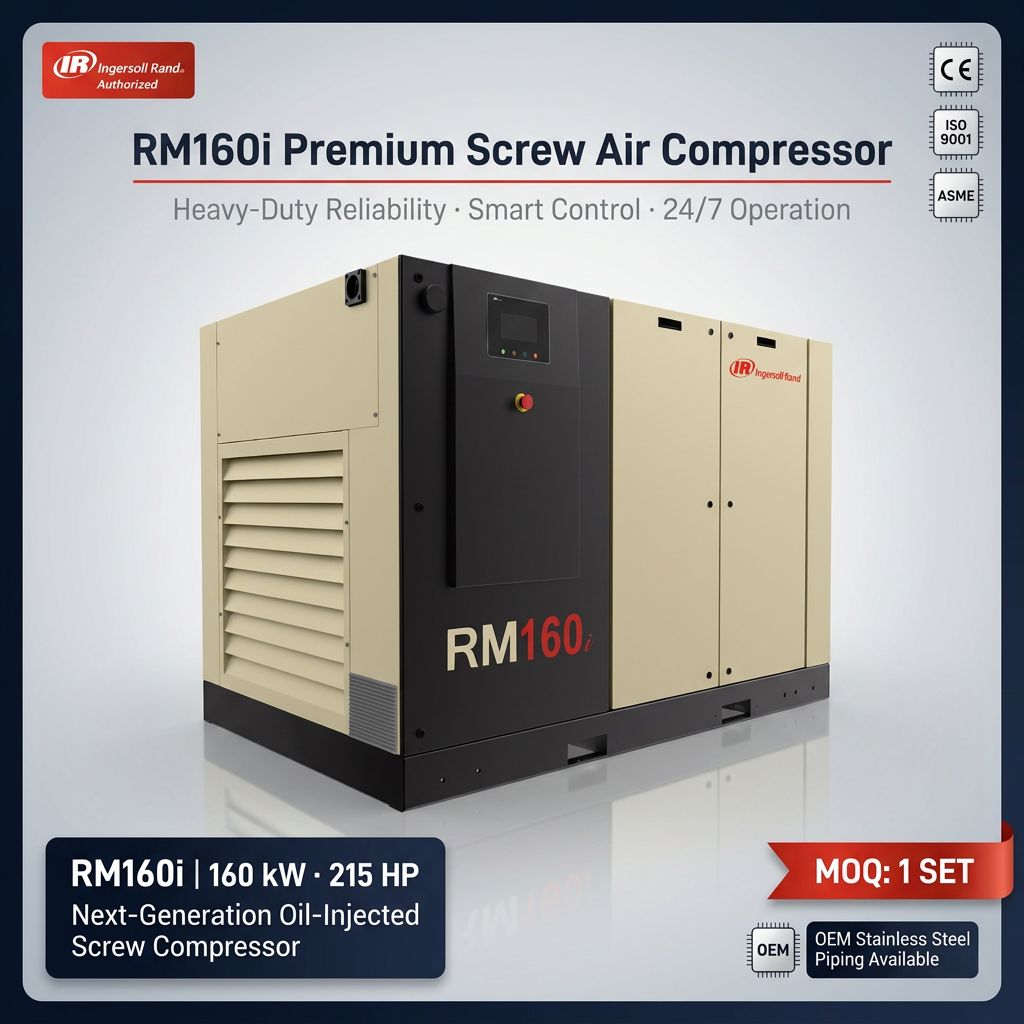

Ingersoll Rand RM160 Oil-Flooded Rotary Screw Air Compressor

Key Features and Benefits
The Ingersoll Rand RM160i delivers the following performance advantages:

IE3 Premium Efficiency Motor: The RM160i features a premium IEC60034-30 IE3 motor with IP55 protection grade and Class F insulation with B rise, delivering significant energy savings in continuous-duty industrial applications.

Up to 15% Higher Efficiency, 9% More Airflow: The all-new state-of-the-art airend with optimized rotor profile delivers up to 15% improved efficiency and up to 9% greater airflow capacity compared to previous models, helping lower energy costs and total cost of ownership.

Three-Stage Separation System — 3ppm Oil Carryover: The three-stage separation system with conical baffle removes all but 3 ppm of lubricating oil from delivered air, protecting downstream equipment and extending filter life to maximise productivity and minimise expenses.

V-Shield™ Technology — Leak-Free Design: V-Shield™ technology uses plane-sealed O-rings that help deliver repeatable, leak-free connections. The design eliminates oil leaks, reduces maintenance, and ensures reliable operation.

Intelligent Luminance Controller — Remote Management: The Luminance Le-180 controller delivers increased control functionality through an user interface as well as remote access with any common, current web browser. It can sequence up to 8 machines with on-line/off-line control and automatic start/stop.

Progressive Adaptive Control (PAC™): Monitors key operating parameters and continuously adapts to prevent unexpected downtime, maximising uptime and reliability.

No-Maintenance Integral Gear Drive System: Eliminates belts and couplings, reducing maintenance requirements and ensuring reliable power transmission.

Low Noise Operation: 75 dB(A) at 1 meter with low sound enclosure, ensuring comfortable working environments in industrial settings.

Factory-Filled Ultra Coolant: Extended service life coolant reduces maintenance frequency and downtime.

Air or Water-Cooled Configurations: Available in air-cooled and water-cooled configurations to suit different installation environments and cooling water availability. Air-cooled models include an aftercooler with condensate separator.

High Ambient Temperature Capability: Standard operation from 2°C to 46°C, with optional high ambient configuration up to 55°C for demanding environments.

NEMA4 (IP65) Electronic Protection: Ensures reliable operation in harsh industrial environments.
