Description
Key Features and Benefits

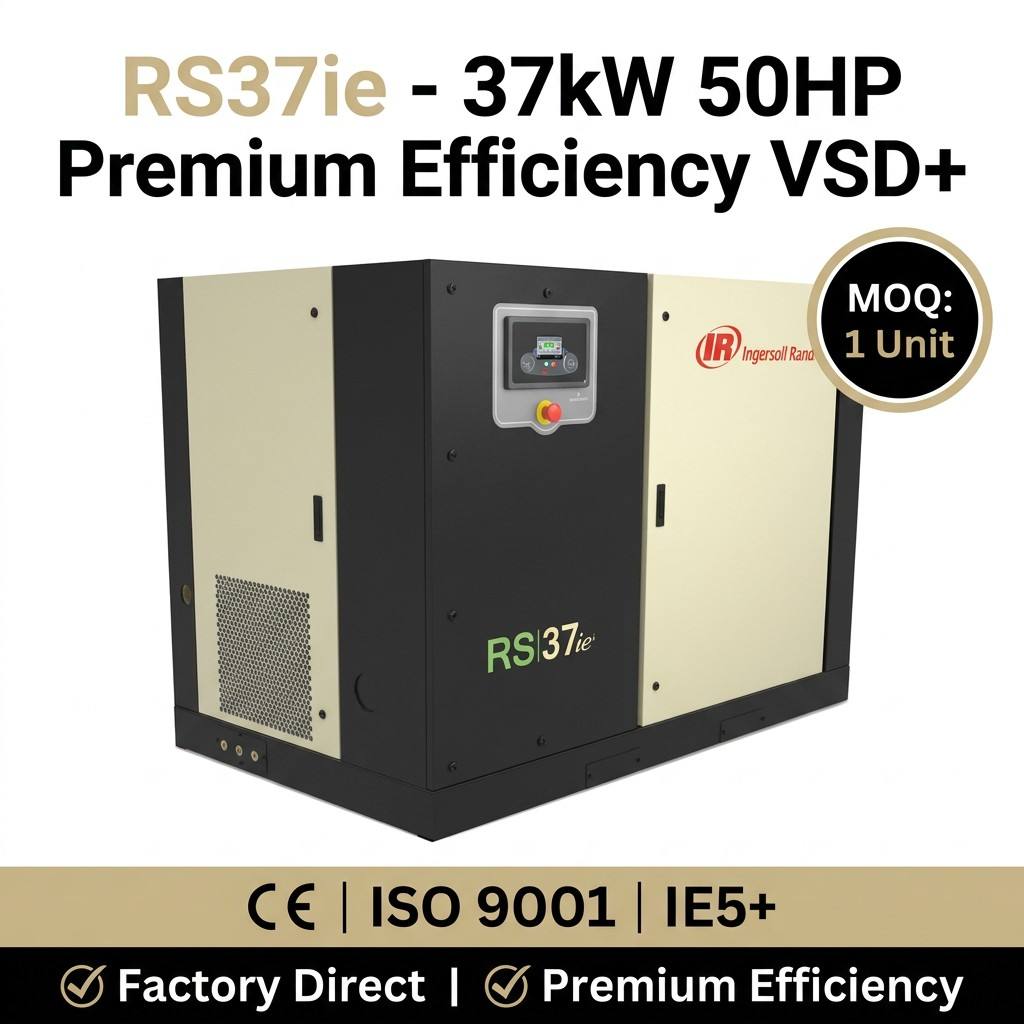

The Ingersoll Rand RS37ie delivers the following performance advantages:
IE3/NEMA Premium® Efficiency Motor: The RS37ie features a premium IE3/NEMA Premium® high-efficiency TEFC motor with IP54 protection, delivering significant energy savings in continuous-duty industrial applications.
Up to 16% Higher Efficiency, 15% More Airflow: The state-of-the-art airend with optimized rotor profile delivers up to 16% improved efficiency and 15% greater airflow capacity compared to previous models, ensuring more air per kilowatt and lower total cost of ownership.
Premium Efficiency "ie" Series Design: The "ie" series features optimized internal components and air paths, delivering superior Free Air Delivery (FAD) and better energy performance than standard fixed-speed models.
V-Shield™ Technology — Leak-Free Design: V-Shield™ technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals. This eliminates oil leaks, reduces maintenance, and ensures reliable operation.
Xe-90M Controller — Remote Intelligent Control: The Xe-90M controller delivers increased control functionality through an user interface and remote access with any common, current web browser, enabling operators to monitor and manage the compressor from anywhere.
PAC™ Protection — Prevents Unexpected Downtime: Progressive Adaptive Control (PAC™) continuously monitors key operating parameters and adapts compressor operation to prevent unexpected downtime. This intelligent protection system maximises uptime and reliability.
Free-Floating Cooling System: The free-floating cooling system significantly improves efficiency and reduces thermal stress, ensuring reliable operation in demanding industrial environments.
Low Noise Operation: 72 dB(A) at 1 meter, ensuring comfortable working environments in industrial settings.
High Ambient Temperature Capability: Standard operation from 2°C to 46°C, with optional low ambient temperature configuration down to -10°C for demanding environments.
ISO 8573 1-5-1 Air Quality: Standard air quality meets ISO 8573 rating 1-5-1, ensuring clean, dry compressed air for critical applications.
Optional Total Air System (TAS): Clean, dry air in a single package that minimises installation costs, space, and features improved ISO air quality.
Optional Energy Recovery System (ERS): Significantly improves efficiency by recovering waste heat for other uses, reducing overall energy costs.
